SMALL DIAMETER AUTOMATIC DIVERTER VALVES W/ FAILSAFE

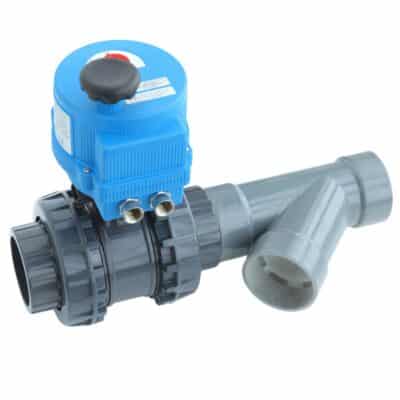

2″, 3″, 4″ Automatic Diverter Valves

Greensmart 2”– 4” PVC/CPVC Bypass/Diverters are third party tested and compliant to IAPMO PS 59 | IAPMO Z 1059, the applicable industry standard for these specialized valves. UPC/IPC Listed and compliant for Alternate Non Potable Water Source uses, Rainwater, Greywater, Indirect & Special Wastes, and many other applications where automatic directional control, capture, separation, treatment, is required.

PLC, BACnet COMPATIBLE

Battery Backup Failsafe

Factory Programmed

Request Quote

GREENSMART AUTOMATIC DIVERTERS ARE THE ONLY UPC^® CODE COMPLIANT AND IAMPO CERTIFIED DIVERTER SYSTEM IN NORTH AMERICA DESIGNED SPECIFICALLY FOR ALTERNATE NON-POTABLE WATER SOURCE APPLICATIONS.

Z 1059

ASTM D1784 / ASTM D2466 / ASTM D2467 / ASTM D2464 / ASTM F1498 / ASTM F439 / ASTM F437

ANSI B16.5 Z1059

Features

2″, 3″, 4″ Valve Sizes
PVC or CPVC
EPDM Liner
Battery Backup Failsafe
PLC, BMS, BACnet Compatible
24 VAC/DC

Applications

Rainwater & Gray Water Diversion for Reuse
Contaminated Washdown Water
Toxic Waste/ Pollution Control
Emergency Water Supply
Cooling Tower Capture & Reuse
Splash Pad Diversion & Control
Cooling Systems
Fire Foam Suppression
Many More

Compliance

UPC Plumbing Code 2027
IAPMO Z 1059)
UL 1310,1951

Downloads

Product Overview

GreenSmart Large-Diameter Diverter Valves provide automated directional flow control for high-flow non-potable water systems.

Designed for commercial, municipal, and industrial applications. They divert water upstream from it’s source to storage, treatment, bypass, and discharge systems.

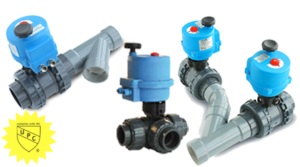

GreenSmart 2" 3", 4" Greywater/rainwater diverter valves

Specifications

Size	Type	Connection	Material	Seats/Seals	Pressure Rating	Voltage
2″	Actuated Single	Socket	PVC or CPVC	EPDM	232 PSI	24 VAC/DC
3″	Actuated Single	Socket	PVC or CPVC	EPDM	232 PSI	24 VAC/DC
4″	Actuated Single	Socket	PVC or CPVC	EPDM	232 PSI	24 VAC/DC

Additional Information

Technical Specifications

Specification	Details
Available Sizes	2″, 3″, 4″ pipeline sizes
Application	Automated flow diversion for stormwater, rainwater greywater, non-potable water reuse, wastewater diversion, storage, treatment, bypass, and discharge systems
Construction	PVC, ASTM 1784 – Corrosion resistant industrial valve assembly designed for non-potable water applications
Actuation	24VAC/DC – Electric quarter-turn actuator with battery-backed fail-safe operation and manual override
Integration	Compatible with BMS, BACnet, PLC, SCADA, float switches, and dry-contact controls.
Operating Mode	Factory programmed failsafe to custom specifications (tested prior to shipment). Automatic diversion, bypass, storage, treatment, and discharge flow control.
Certifications	UPC Plumbing Code compliant. Chapters 15,16 Z1059 tested and listed UL1310, 1951

Compliance & Standards

Compliance & Standards

Designed for large-scale alternate water source systems including stormwater, rainwater, greywater, wastewater, non-potable water reuse, diversion, bypass, separation, storage, treatment, and discharge applications requiring automated directional flow control.

Suitable for commercial, municipal, industrial, institutional, campus, and infrastructure projects utilizing high-flow diversion and reuse systems under applicable UPC / IPC and California plumbing code requirements.

Manufactured using industrial-grade corrosion-resistant components with electrically actuated controls and battery-backup failsafe protection engineered for long-term infrastructure operation.

Compliant with applicable standards including:
