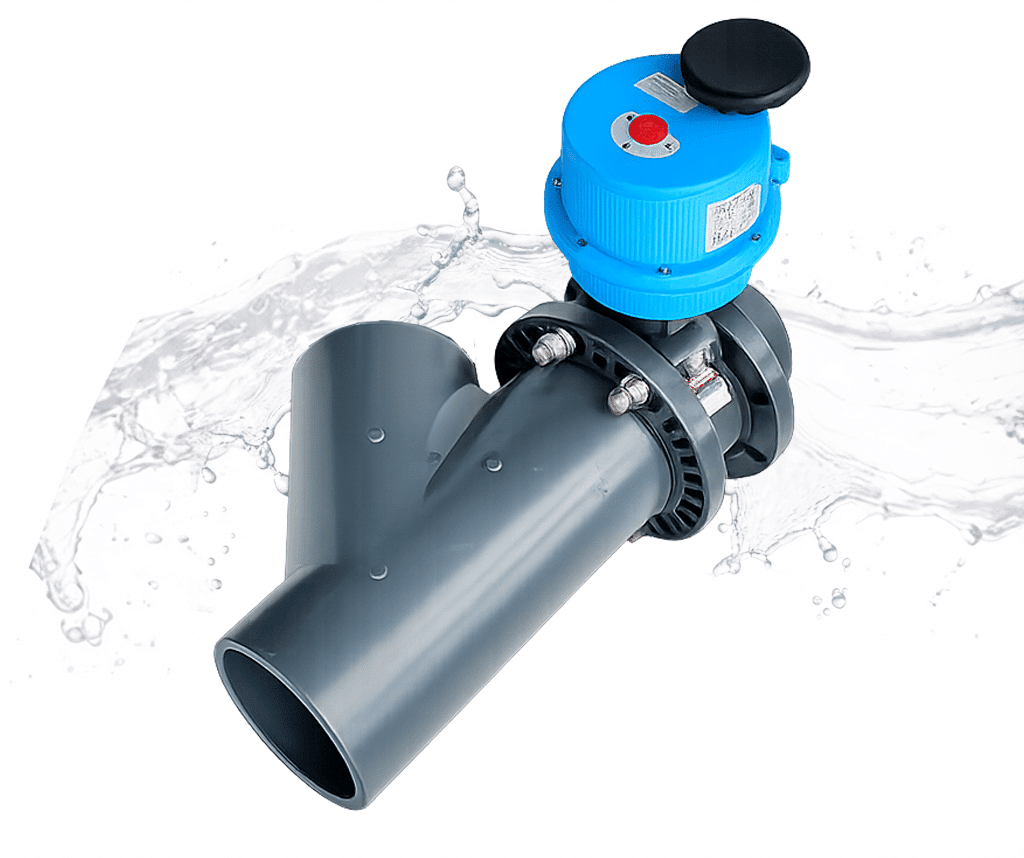

Large Diameter Automatic Diverter Valves w/ Failsafe

6″ – 12″ Automatic Diverter Valves

GreenSmart Large Diameter Diverter Valves are engineered to automatically divert, redirect, or isolate water flow in high-capacity non-potable water systems.

PLC, BACnet COMPATIBLE

Battery Backup Failsafe

Factory Programmed

Request Quote

Greensmart automatic diverters are the only UPC^® Code compliant and IAPMO certified diverter system in North America designed specifically for Alternate Non-Portable Water Source applications.

IGC 352 | Z 1059

IAPMO Certified

ASTM D1784 / ASTM D2466 / ASTM D2467 / ASTM D2464 / ASTM F1498 / ASTM F439 / ASTM F437

ANSI B16.5 Z1059

Features

6″, 8″, 10″, 12″ Valve Sizes
PVC
EPDM Liner
Battery Backup Failsafe
PLC & BMS Friendly & BACnet compatible
24 VAC/DC Operation

Applications

Rainwater & Gray Water Diversion for Reuse
Contaminated Washdown Water
Toxic Waste/ Pollution Control
Emergency Water Supply
Cooling Tower Capture & Reuse
Splash Pad Diversion & Control
Cooling Systems
Fire Foam Suppression

Compliance

UPC Plumbing Code 2027
IAPMO Certified (IGC 352-18a) | Z 1059)
BABA Compliant Pathway
UL 1310,1951

Downloads

Product Overview

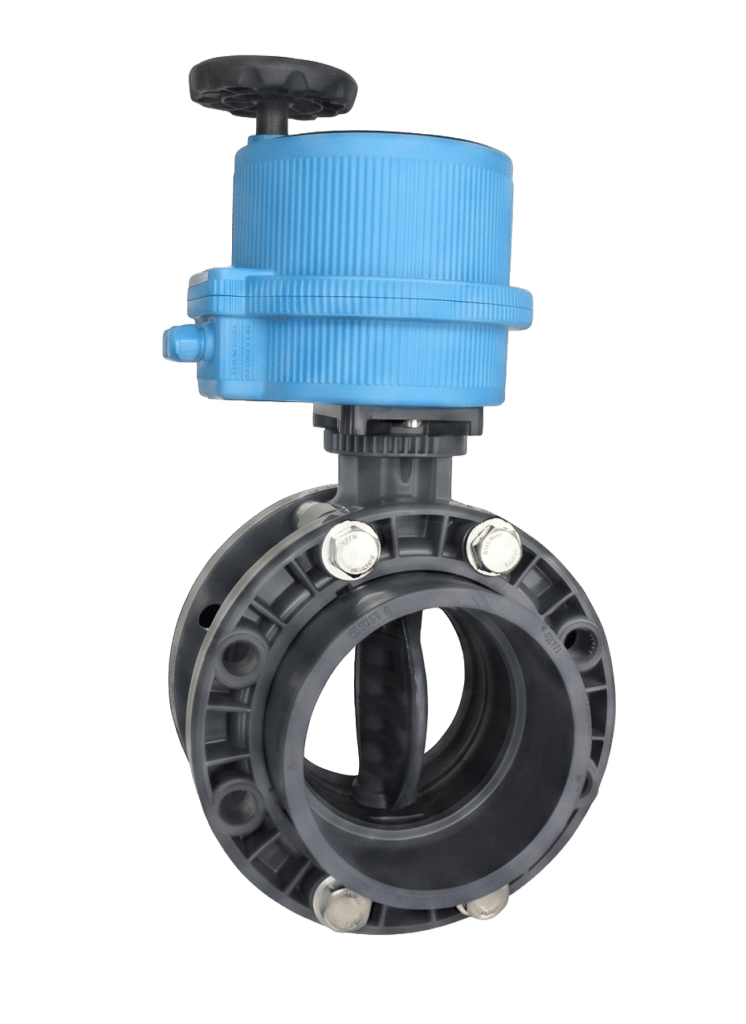

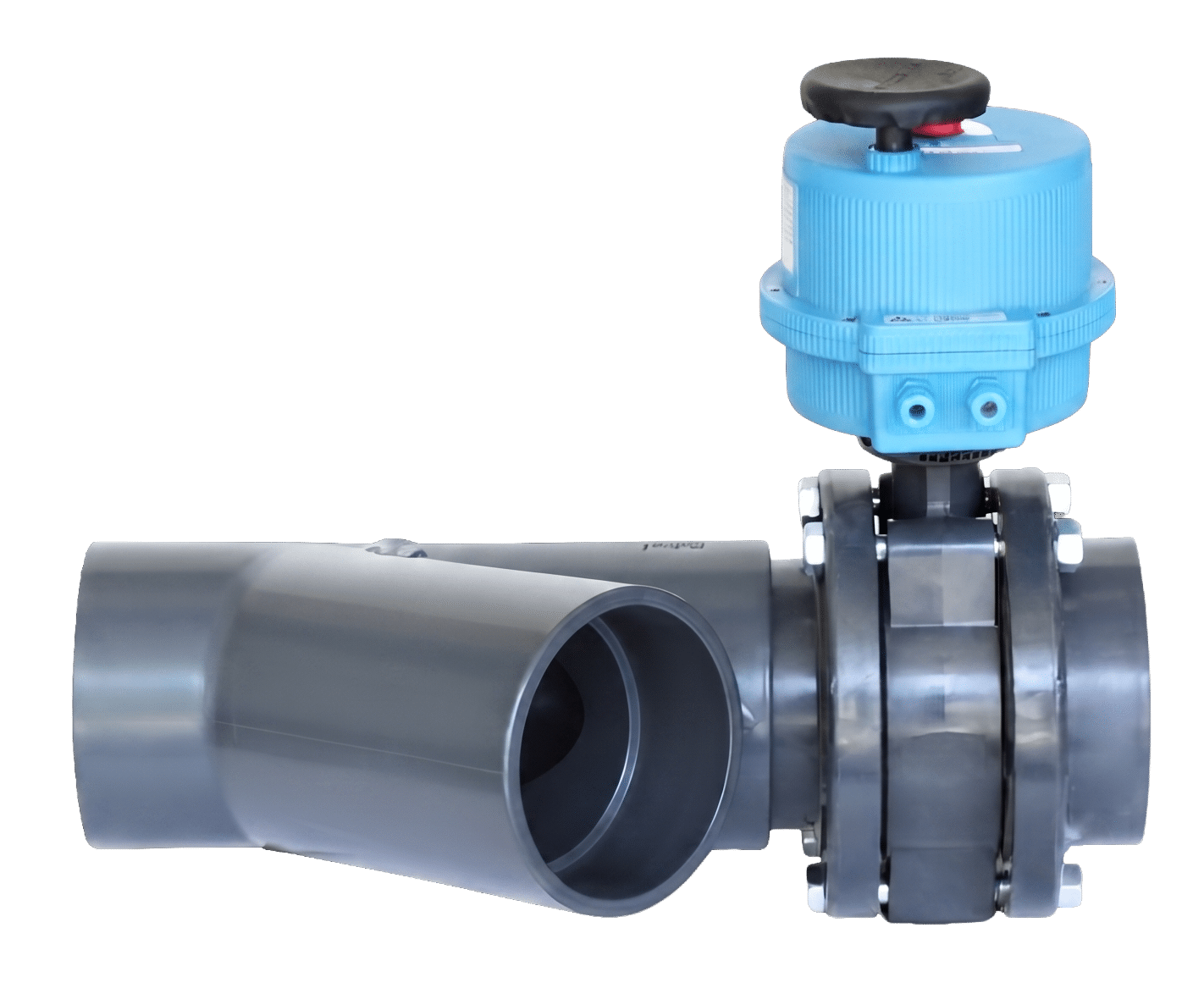

GreenSmart Large-Diameter Diverter Valves provide automated directional flow control for high-flow non-potable water systems.

Designed for commercial, municipal, and industrial applications, they efficiently divert water between storage, treatment, bypass, and discharge systems.

Specifications

Model	Type	Size	Connection	Disc Material	Seats/Seals	Pressure Rating	Voltage
GFEOV113-EL24VDCBAT	Actuated Single	6″	Flange	PVC	EPDM	150 PSI	24 VAC/DC
GFEOV114-EL24VDCBAT	Actuated Single	8″	Flange	PVC	EPDM	150 PSI	24 VAC/DC
GFEOV115G-EL24VDCBAT	Actuated Single	10″	Flange	PVC	EPDM	75 PSI	24 VAC/DC
GFEOV116G-EL24VDCBAT	Actuated Single	12″	Flange	PVC	EPDM	75 PSI	24 VAC/DC

Additional Information

Technical Specifications

Specification	Details
Available Sizes	6″, 8″, 10″, and 12″ nominal flanged pipeline sizes
Application	Automated flow diversion for stormwater, rainwater greywater, non-potable water reuse, wastewater diversion, storage, treatment, bypass, and discharge systems
Construction	PVC, ASTM 1784 – Corrosion resistant industrial valve assembly designed for non-potable water applications
Actuation	24VAC/DC – Electric quarter-turn actuator with battery-backed fail-safe operation and manual override
Integration	Compatible with BMS, BACnet, PLC, SCADA, float switches, and dry-contact controls.
Operating Mode	Factory programmed failsafe to custom specifications (tested prior to shipment). Automatic diversion, bypass, storage, treatment, and discharge flow control.
Certifications	UPC Plumbing Code compliant. Chapters 15,16 IAPMO IGC 352 / Z1059 tested and listed UL1310, 1951
Mounting	Inline flanged pipeline installation for horizontal or vertical piping configurations. Designed for integration into new construction and retrofit projects.
Flow Characteristics	Low-restriction, high-flow design for commercial, industrial, and municipal infrastructure

Designed for large-scale alternate water source systems including stormwater, rainwater, greywater, wastewater, non-potable water reuse, diversion, bypass, separation, storage, treatment, and discharge applications requiring automated directional flow control.

Suitable for commercial, municipal, industrial, institutional, campus, and infrastructure projects utilizing high-flow diversion and reuse systems under applicable UPC / IPC and California plumbing code requirements.

Manufactured using industrial-grade corrosion-resistant components with electrically actuated controls and battery-backup failsafe protection engineered for long-term infrastructure operation.

Compliant with applicable standards including:
