Emergency Water System (EWS) Automatic Fill Valve – 3″ – 8″
Overview

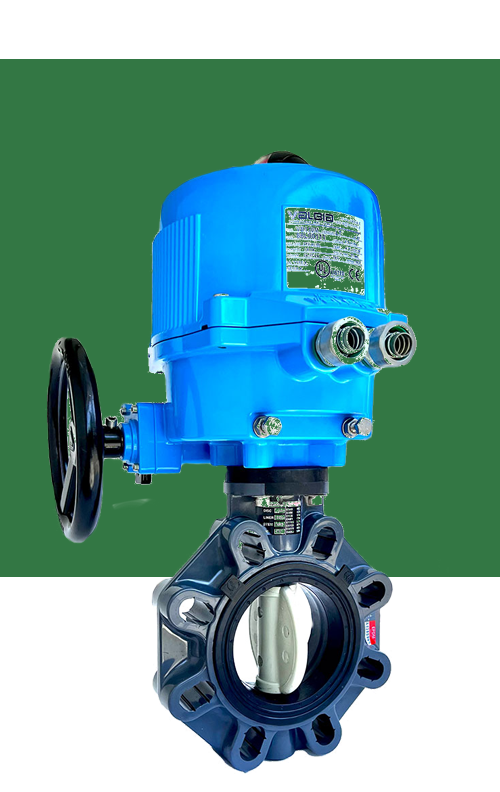

The GreenSmart EWS Automatic Fill Valve is part of our industrial-grade FX Series, engineered for high-intensity potable water and Emergency Water System (NPC-5) applications. Each EWS valve includes electric actuation, full BMS control panel compatibility, a manual geared override wheel, aluminum actuator housing, logic boards for readout signaling, and customizable valve-open positioning based on project requirements. All valves are special ordered, factory programmed, and fully tested to project specifications before shipment.
Available in 3″, 4″, 6″, and 8″ diameters, each valve is precision-built using corrosion-resistant, lead-free materials suitable for long-term potable water handling.
Applications
The EWS Automatic Fill Valve is ideal for:
- Emergency Water Supply (NPC-5) systems
- Municipal or campus potable fill systems
- Hospitals, shelters, and emergency operations centers
- High-capacity potable water storage systems
- Engineered systems requiring automatic fill diversion
Key Features & Benefits
Engineered for NPC-5 Potable Water Systems
- Built specifically for Emergency Water Supply (EWS) applications
- Supports portable water fill and bypass operations
- Meets UPC/IPC and local code requirements
Electric Actuator with BMS Integration
- Compatible with most Building Management Systems
- Automated fill and shutoff sequencing
- Includes manual override handwheel for emergency manual control
High-Durability Construction
- Lead-free brass and/or stainless steel welded components
- Commercial-grade electric acguator
- Designed for condinupus daily and high flow enironments
Project-Configured
- Each valve shppped pre-programmed to project specs
- Optional controls, wiring, and interface packages available
Product Information

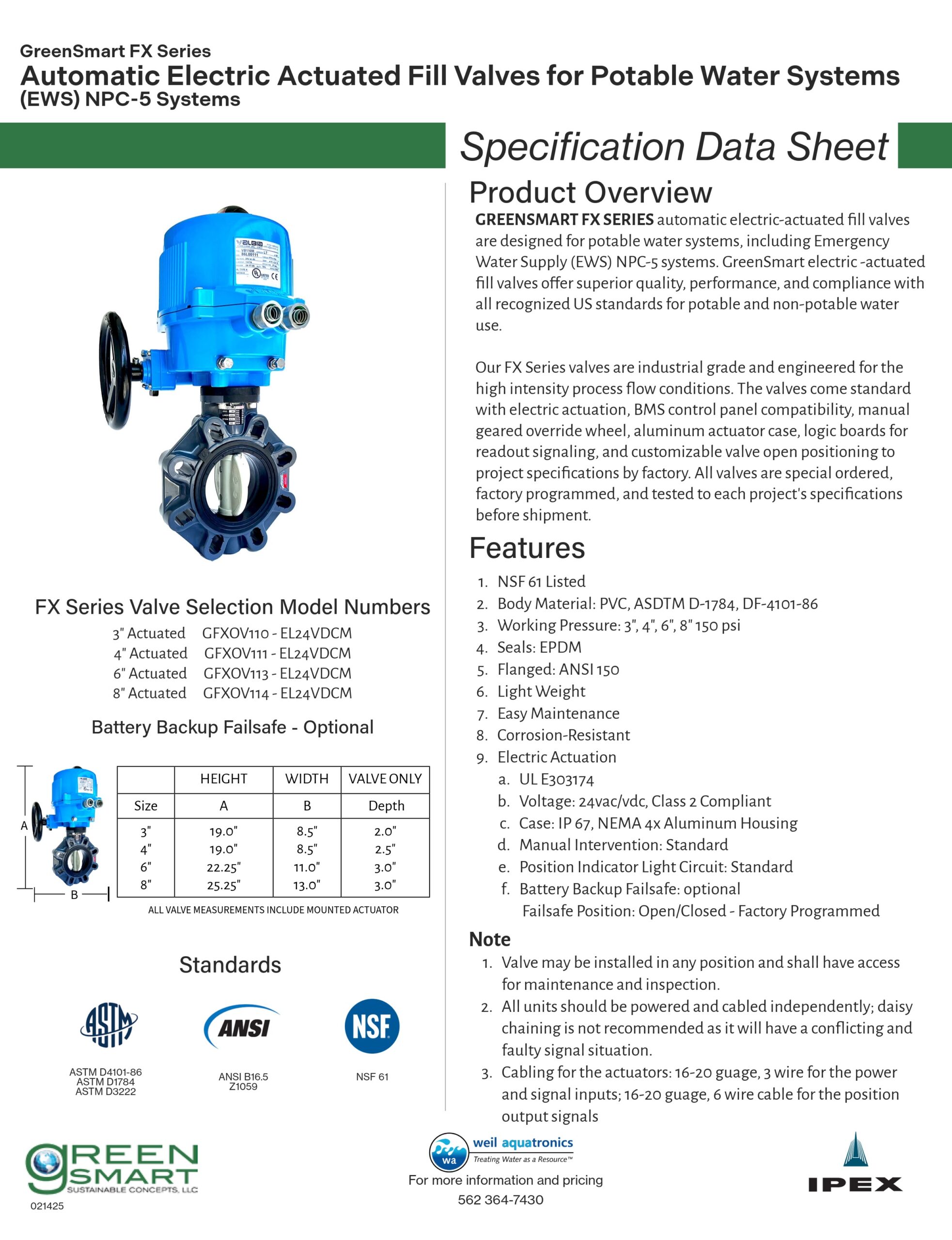

EWS Automatic Control Valves Specification Data Sheet
GreenSmart Diverter Valves Installation & Operating Manual
NOTE: See Assembly Information section for a video on how to wire Valbia actuator and Installation/Maintenance Instructions.
| Specification | Details |
|---|---|
| Available Sizes | 3″, 4″, 6″, 8″ |
| Application | Potable Water (NPC-5) |
| Material | Lead-free-Brass / Stainless steel |
| Actuation | Electric actuator with manual override |
| Integration | BNS / SCADA compatible |
| Operating Mode | Automatic fill, shutoff, and bypass |
| Certifications | UPC/IPC copliant, NPC-5 compliant |
| Mounting | Inline pipeline installation |
| Flow Characteristics | High-flow commercial capacity |
- ASTM D4101-86 ASTM D1784 ASTM D3222
- ANSI B16.5
- NSF 61
- Designed for NPC-5 compliant Emergency Water Supply systems
- Suitable for potable water handling under applicable California codes
- Uses lead-free, corrosion-resistant components
- Compatible with reuse system integration where required
GreenSmart provides complete installation support including:
Assembly Information
Video – How to wire VALBIA VB030, VB030M, VB350, VB350M LT
Valbia/Bonomi Factory Instruction Manual – Valbia Electric Actuators Series 85 (VB030-VB350)
Requirements
- 24v Low Voltage output
- 2-6 Amps (size dependent)
Recommended
- Honeywell AT 150F 1022 Transformers with circuit breaker reset button, 50VA (“F” designates reset button for circuit breaker)
- 120/208/240v 50VA Multi-MNT Transformer
- 24vac output
- Class 2, Standard UL 1585
Request a Quote
GreenSmart provides project-specific configuration, pricing, and lead times.
ASTM D4101-86 ASTM D1784 ASTM D3222
ANSI B16.5 Z1059
NSF 61
IAPMO tested and UPC Listed for use through out the U.S.
